Are you looking to expand your workspace without a tangle of cables? You might have heard about daisy chaining monitors over USB-C and wondered if it’s really possible—and easy to do.
Imagine connecting multiple screens through a single cable, keeping your desk clean and boosting your productivity at the same time. But is your setup ready for this, and what do you need to know before trying it? Keep reading to discover the truth about daisy chaining monitors over USB-C and how it can transform your work or gaming experience.
Credit: www.canr.msu.edu
Daisy Chaining Basics
Daisy chaining is a way to connect multiple monitors using one cable. It allows you to link one monitor to another in a chain. This setup needs monitors that support DisplayPort Multi-Stream Transport (MST).
One monitor connects to the computer, and others connect to each other. The video signal passes from the computer to all monitors in the chain. USB-C can carry video signals but must support DisplayPort Alt Mode and MST.
- Less clutter:Only one cable runs from the computer.
- More screens:Connect multiple monitors without extra ports.
- Easy setup:Fewer cables make the workspace neater.
- Better productivity:More screen space helps multitasking.
Credit: www.reddit.com
Usb-c And Video Output
USB-C is a versatile port used for charging, data, and video. Many monitors support video through USB-C using a feature called DisplayPort Alternate Mode. This mode lets USB-C carry DisplayPort signals to your monitor.
With DisplayPort Alt Mode, you can connect a single USB-C port to a monitor for video output. Some monitors support daisy chaining, allowing multiple monitors to connect in a series. This means you can plug one monitor into your computer and then connect a second monitor to the first one.
| Feature | Description |
|---|---|
| USB-C Port | Supports video, data, and charging |
| DisplayPort Alt Mode | Allows USB-C to carry video signals |
| Daisy Chaining | Connects multiple monitors using one port |
| Monitor Support Needed | Monitors must support DisplayPort MST for daisy chaining |
Requirements For Daisy Chaining Usb-c Monitors
Compatible monitorsmust support DisplayPort Multi-Stream Transport (MST). Not all USB-C monitors allow daisy chaining. Check the monitor’s specs for MST or daisy chain support.
Supported hardware and cablesare essential. Use a high-quality USB-C or Thunderbolt 3 cable with enough bandwidth. The cable should support video and data transfer. Lower quality cables may cause issues.
| Hardware | Requirement |
|---|---|
| Monitor | DisplayPort MST support |
| Cable | USB-C or Thunderbolt 3 with video support |
| System | Supports DisplayPort over USB-C |
| Graphics Card | Must support MST daisy chaining |
System and graphics card compatibilityis key. The device must support DisplayPort over USB-C. Some older laptops or desktops do not support MST. Check your graphics card’s specs for daisy chain support.
Credit: www.youtube.com
Setting Up Daisy Chain Monitors Over Usb-c
Daisy chaining monitors over USB-C simplifies your workspace setup. Connect multiple displays using a single USB-C port for a seamless experience. Ensure your devices support DisplayPort over USB-C for optimal performance.
Connecting The First Monitor
Connect your computer to the first monitor using a USB-C cable. Make sure the monitor supports DisplayPort MST (Multi-Stream Transport). Use the USB-C port labeled for video input. Power on the monitor and confirm the connection on your computer. This monitor will act as the primary displayin the chain.
Linking Additional Monitors
Use a DisplayPort outor USB-C out on the first monitor to connect the next one. Repeat this connection process for each monitor. Each monitor in the chain must support MSTand have the proper ports. Keep the cables secure to avoid signal loss or flickering.
Configuring Display Settings
Open your computer’s display settings to arrange monitors. Adjust the resolutionand orientationfor each screen. Choose the correct order to match physical placement. Enable extended desktop modeto use all monitors as one workspace. Save settings to apply changes.
Troubleshooting Common Issues
Daisy chaining monitors over USB-C can cause issues like no signal or flickering. Check if your devices support DisplayPort MST and use compatible cables. Updating drivers often fixes connection problems.
No Signal Or Display Problems
Check if all connections are secure. A loose cable can cause issues. Verify if the monitor is powered on. Sometimes, the problem is just a simple oversight. Ensure both ends of the USB-C cable are properly connected. If problems persist, try using a different USB-C cable to rule out cable defects. Test the monitor with another device to ensure it’s working properly.
Resolution And Refresh Rate Limits
Not all monitors support high resolutions or refresh rates over USB-C. Check the monitor’s manual for supported specifications. Adjust settings to match these limits. Lowering resolution or refresh rate can solve display problems. Use the display settings on your computer to make these changes. It’s often a quick fix for display issues.
Cable And Port Compatibility
Ensure your cables and ports are compatible. Some USB-C ports don’t support video output. Check your device’s specifications. Use only certified cables for best results. Non-certified cables might not work correctly. Always use the right ports for connecting monitors. Different ports have different capabilities.
Alternatives To Usb-c Daisy Chaining

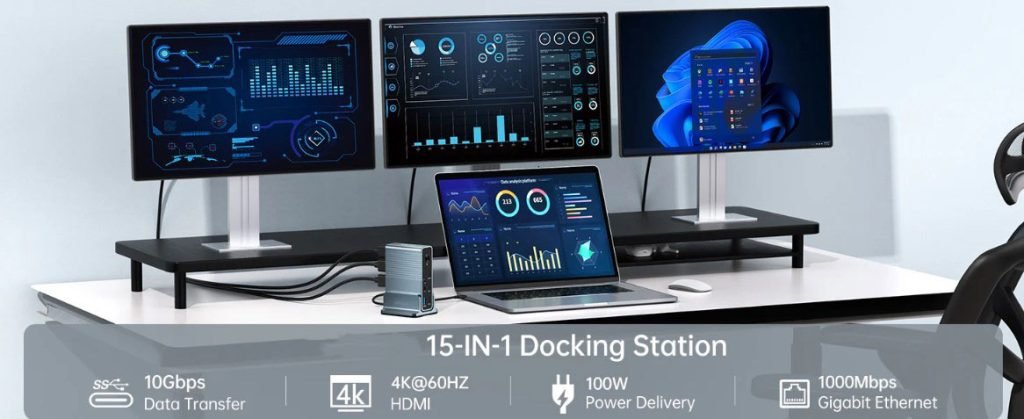

Docking stationsoffer a simple way to connect multiple monitors to one USB-C port. They usually have several video outputs like HDMI or DisplayPort. This lets you use two or more screens without extra adapters. Docking stations also add USB ports and charging capabilities.
Multi-Stream Transport (MST) hubssplit one DisplayPort signal into multiple streams. This allows daisy chaining of monitors using DisplayPort over USB-C. MST hubs work well with compatible monitors but may not support very high resolutions on all screens.
- Wireless display solutionslet you connect monitors without cables.
- Devices like Miracast or Chromecast send video signals over Wi-Fi.
- This setup reduces desk clutter but may have slight lag.
Optimizing Your Multi-monitor Setup
Setting up multiple monitors can boost your productivity. Arrange screens side by side in your computer’s display settings. Drag and drop the displays to match your real setup. This makes moving your mouse and windows easy and natural.
Adjust the resolution and scale for each monitor. This ensures clear text and images. Remember, your main screen should be the one you use most often.
Keep your computer’s power supply in mind. Using many monitors can draw more power. Check that your USB-C hub or dock supports enough power deliveryfor all devices.
Some USB-C ports may limit performance if too many devices connect. Use quality cables and docks to avoid slowdowns. Monitor refresh rates and resolution settings affect how smoothly the screens work.
For a better visual experience, use screens with similar sizes and resolutions. This creates a consistent look. Adjust brightness and color settings to match across all monitors. This reduces eye strain and makes work easier.
Frequently Asked Questions
Can I Daisy Chain Monitors Using Usb-c Ports?
Yes, you can daisy chain monitors over USB-C if both monitors and your device support DisplayPort Alt Mode and MST (Multi-Stream Transport). This allows multiple displays to connect through one USB-C port, extending or mirroring your screen efficiently.
Do All Usb-c Monitors Support Daisy Chaining?
No, not all USB-C monitors support daisy chaining. Monitors must have DisplayPort MST support and a USB-C port with video output capabilities. Always check the monitor’s specifications before attempting to daisy chain.
What Devices Support Usb-c Monitor Daisy Chaining?
Devices with USB-C ports that support DisplayPort Alt Mode and MST can daisy chain monitors. This includes many newer laptops, desktops, and some tablets. Check your device’s technical details to confirm compatibility.
How Many Monitors Can I Daisy Chain Via Usb-c?
Typically, you can daisy chain up to three or four monitors, depending on your device and monitor capabilities. Bandwidth limitations of USB-C and DisplayPort MST affect the number of supported displays.
Conclusion
Daisy chaining monitors over USB-C can simplify your workspace. Not all devices support this feature, so check compatibility first. You need the right cables and monitors with DisplayPort MST support. This setup saves ports and reduces cable clutter. Performance depends on your computer and monitor capabilities.
Keep these points in mind to avoid frustration. This method works well for many users but may not suit everyone. Test your equipment before relying on daisy chaining for important tasks.
