Are you confused about how your USB-C port can connect to a monitor or TV? You’ve probably heard the term “DisplayPort Alt Mode” but aren’t sure what it means or why it matters.
Understanding USB-C DisplayPort Alt Mode can change the way you use your devices, making your setup simpler and more powerful. You’ll discover exactly what this technology is, how it works, and why it could be the missing piece to unlocking better video and audio quality from your gadgets.
Keep reading—you’ll soon see how this small feature can make a big difference for your screen experience.
Usb-c And Displayport Basics
The USB-C connectoris small and reversible. It can plug in any way, making it easy to use. USB-C supports power delivery, data transfer, and video output all in one cable.
DisplayPortis a video interface that sends high-quality video and audio. It is used to connect computers to monitors. DisplayPort supports high resolutions and refresh rates.
Alt Modelets USB-C carry signals from other standards like DisplayPort. This means one USB-C port can do video, data, and charging. It helps reduce the number of cables needed.
How Displayport Alt Mode Works
DisplayPort Alt Modesends video and audio signals over a USB-C cable. It uses the same wires that normally carry USB data. This means one cable can handle both power and video. The USB-C port switches its function to support DisplayPort signals.
The device and monitor must both support DisplayPort Alt Mode. Without support, the cable will only work for USB data and charging. This feature is common in many modern laptops, tablets, and monitors.
| Supported Resolution | Maximum Refresh Rate |
|---|---|
| 1080p (Full HD) | Up to 144Hz |
| 1440p (2K) | Up to 120Hz |
| 2160p (4K) | Up to 60Hz |
| 4320p (8K) | Up to 30Hz |
Benefits Of Displayport Alt Mode
Single Cable Conveniencelets you connect video, audio, and power through one USB-C cable. This reduces cable clutter and makes setup easy. It saves space and keeps your desk neat.
Enhanced Video and Audio Qualitysupports high-resolution displays and clear sound. It can handle 4K and higher resolutions with smooth refresh rates. This means better pictures and richer sound for work or play.
Power Delivery Integrationallows charging of devices while connected. Your laptop or phone can receive power without extra cables. This keeps devices charged and ready to use all day long.

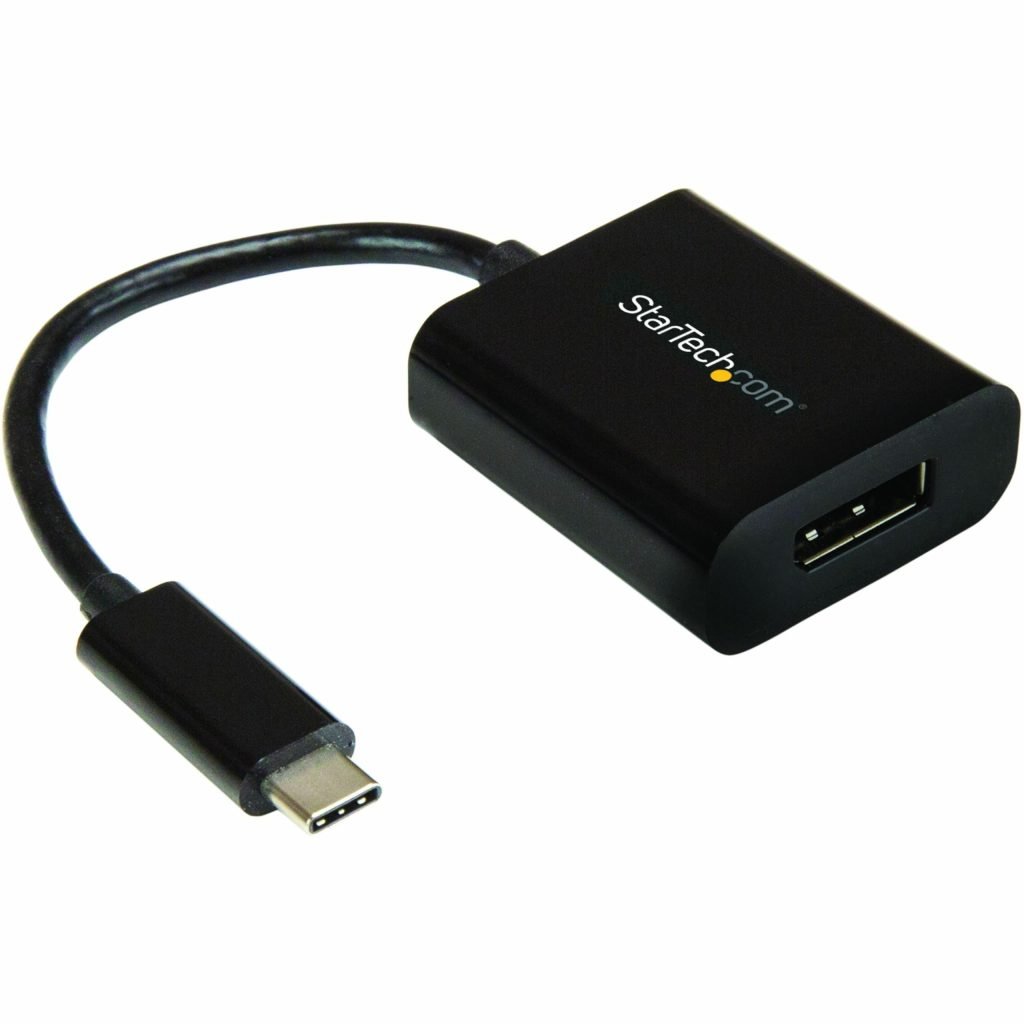

Credit: www.amazon.com
Devices Supporting Usb-c Displayport Alt Mode
USB-C DisplayPort Alt Mode allows devices to connect to displays using a single USB-C cable. This mode enables high-quality video and audio transmission, making it easier to connect laptops, tablets, and smartphones to monitors and TVs. Devices with this feature offer a streamlined and efficient connection experience.
Laptops And Tablets
Many modern laptops and tabletssupport USB-C DisplayPort Alt Mode. These devices can send video and audio signalsthrough a USB-C port. This helps connect to external monitors easily. Popular brands include Apple, Dell, and HP. This feature allows for high-resolution displaysand smooth video playback.
Monitors And Displays
Some monitors and displayshave USB-C ports that accept DisplayPort Alt Mode signals. This means fewer cables are needed. These displays can receive both power and video through one cable. It simplifies the setup and keeps desks tidy.
Adapters And Hubs
Adapters and hubsconvert USB-C to other video outputs like HDMI or DisplayPort. They help connect devices without native DisplayPort Alt Mode support. Many adapters also allow charging and data transfer simultaneously. This makes them very versatile and handy.
Setting Up Displayport Alt Mode
USB-C DisplayPort Alt Mode allows a USB-C port to send video signals to a monitor using DisplayPort technology. This mode enables high-quality video and audio transfer through a single cable. Setting it up involves connecting compatible devices and enabling the correct input source on the display.
Choosing The Right Cable
Pick a USB-C cablethat supports DisplayPort Alt Mode. Not all USB-C cables work for video. Look for cables labeled DP Alt Modeor Thunderbolt 3/4. These can carry video and audio signals. Using the correct cable ensures clear video outputand fast data transfer.
Connecting Devices
Connect the USB-C cable from your device to the monitor’s USB-C or DisplayPort input. The device must support DisplayPort Alt Mode. Once connected, the display should turn on automatically. Choose the correct input source on your monitor if needed.
Troubleshooting Common Issues
- Check if both devices support DisplayPort Alt Mode.
- Use a certified USB-C cable with video support.
- Restart devices if the display does not appear.
- Ensure monitor input is set to the correct port.
- Update device drivers for USB-C and graphics.
Credit: www.paradetech.com
Comparing Displayport Alt Mode With Other Video Modes
USB-C DisplayPort Alt Mode lets a USB-C port send video signals to a monitor. It offers better video quality compared to older modes like HDMI or VGA. This mode uses fewer cables and supports higher resolutions for a clearer picture.
Hdmi Over Usb-c
HDMI over USB-C allows devices to connect easily. It supports video and audio transfers. Unlike DisplayPort Alt Mode, HDMI is common in TVs. DisplayPort Alt Mode offers better quality for computers. It supports higher resolutions and refresh rates. HDMI is good for home entertainment. DisplayPort is better for professional use.
Thunderbolt Versus Displayport Alt Mode
Thunderbolt and DisplayPort Alt Mode both use USB-C. Thunderbolt is faster and more powerful. It can transfer data and video quickly. DisplayPort Alt Mode focuses on video output. It does not support data transfer like Thunderbolt. Thunderbolt is best for high-speed needs. DisplayPort is ideal for video-specific tasks.
Mst And Daisy-chaining
MST and Daisy-Chaining let you connect multiple monitors. MST stands for Multi-Stream Transport. It sends multiple video signals through one cable. Daisy-Chaining links monitors in a series. DisplayPort Alt Mode supports both MST and Daisy-Chaining. These features make it easy to expand your display setup.
Future Trends And Developments
USB4combines data, video, and power in one cable. It supports DisplayPort Alt Modefor video output. This integration allows for higher bandwidth, which means faster data and better video quality.
With USB4, resolutions can reach up to 8Kor even higher. This helps with clearer images and smoother videos. Devices can now connect with fewer cables, making setups simpler.
| Aspect | Details |
|---|---|
| Bandwidth | Up to 40 Gbps for fast data and video transfer |
| Resolutions | Supports up to 8K and beyond |
| Industry Adoption | Many laptop and monitor makers use USB4 with DisplayPort Alt Mode |
More companies are adding USB4 ports to their products. This trend means better connections for users everywhere.
Credit: www.navilock.com
Frequently Asked Questions
What Is Usb-c Displayport Alt Mode?
USB-C DisplayPort Alt Mode lets USB-C ports transmit video signals. It allows devices to connect to monitors using DisplayPort protocols through a USB-C cable.
How Does Displayport Alt Mode Work On Usb-c?
It uses USB-C pins to send DisplayPort video and audio signals. This mode enables high-resolution video output without needing extra adapters.
Which Devices Support Usb-c Displayport Alt Mode?
Many modern laptops, tablets, and smartphones support it. Devices with USB-C ports often include this feature for external display connectivity.
Can Usb-c Displayport Alt Mode Replace Hdmi?
Yes, it can replace HDMI for video output. It supports higher resolutions and refresh rates with a single, reversible cable.
Conclusion
USB-C DisplayPort Alt Mode lets you send video through a USB-C port. It helps connect laptops, tablets, and phones to monitors easily. This mode supports high-quality video and audio signals. You don’t need extra cables or adapters. It saves space and keeps your desk tidy.
Many modern devices now include this feature. Knowing about it helps you choose the right cables and devices. It makes setting up screens simpler and faster. A useful tech option for better connectivity and display.
