A heavy ultrawide monitor can transform your workflow or gaming setup—but only if it stays where you put it. A 49-inch screen weighing 25 lb or more puts serious stress on a desk, a wall bracket, or an arm. One mistake and you’re looking at a cracked panel, a damaged wall, or worse.
This guide walks you through every safety-critical step: choosing the right mount, assessing your wall or desk, installing correctly, and maintaining the setup long-term. No fluff, no guesswork—just practical, tested advice.
Choosing the Right Mount for Your Heavy Ultrawide
Not every mount sold as “heavy duty” actually handles the weight and size of a modern ultrawide. You need to match three factors: weight capacity, VESA pattern, and your mounting surface.
Weight Capacity and VESA Compatibility
Every monitor mount has a stated maximum weight. Never trust a mount that claims to hold your monitor but has no margin—choose one rated for at least 20% more than your screen’s weight. For example, if your ultrawide weighs 28 lb, pick a mount rated for 35 lb or higher.
The VESA pattern (the four-hole layout on the back of the monitor) must also match. Most ultrawides use 100×100 mm or 200×200 mm patterns, but some 49-inch models require 200×100 mm. Check your monitor’s manual or measure the hole spacing yourself. A mount that doesn’t align with the VESA pattern is a non-starter—using adapter plates often introduces instability.
Wall Mount vs. Desk Mount vs. Ceiling Mount – Which Is Best?
| Mount Type | Pros | Cons | Best For |
|---|---|---|---|
| Wall mount | Clean look, saves desk space, very stable into studs | Permanent, harder to adjust, requires stud placement | Fixed sit-stand or standing-only setups |
| Desk mount (clamp or grommet) | Adjustable height/tilt/swivel, easy repositioning | Desk must be sturdy (not particleboard), can wobble if not tight | Multi-use desks, frequent adjustment |
| Ceiling mount | Frees both desk and wall, unique positioning | Complex install, ceiling must be reinforced, limited availability | Specialty setups (sim racing, flight sim) |

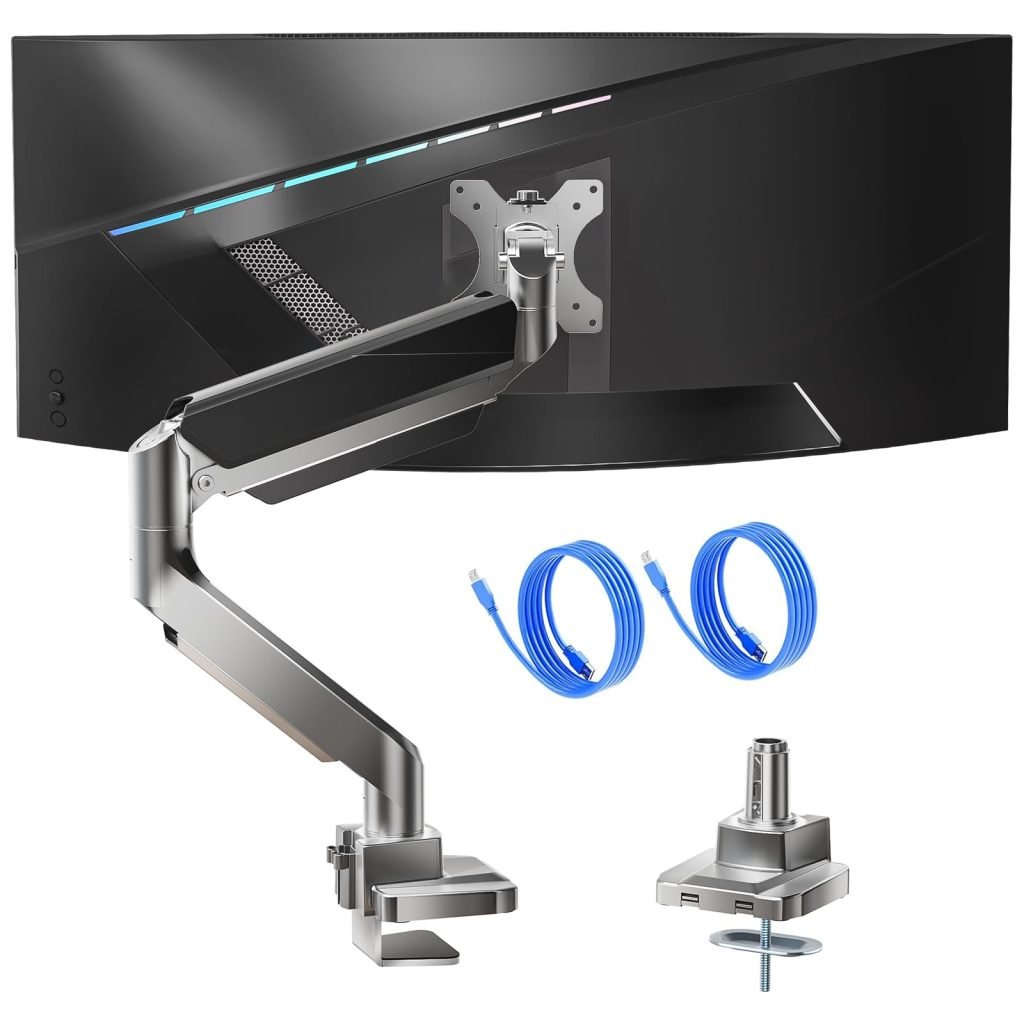

In practice, a heavy-duty desk mount with a steel clamp is the most versatile choice for most users. Desks over 1 inch thick made of solid wood or thick MDF work well. If your desk is a thin laminate or glass, go with a wall mount into studs.
Material Quality and Durability
Look for mounts made from cold-rolled steel or aluminum alloy. Avoid plastic joint parts—they can crack under repeated adjustment. Bolts and screws should be zinc-plated or stainless steel to resist rust. A mount that uses cheap, soft metal in the tilt mechanism will eventually sag, no matter how tight you torque it.
For a reliable desktop solution, consider pairing your mount with an adjustable desktop monitor stand that provides extra surface support underneath heavy screens.
Preparing Your Workspace and Tools
Before you touch a screw, clear your desk area completely. You need room to lay out the mount parts, set the monitor face-down on a soft cloth (a microfiber towel works), and move freely around the desk or wall.
Essential tools:
- Stud finder (electronic, not magnetic)
- Power drill with appropriate bits (masonry bit for concrete, wood bit for studs)
- Screwdriver (usually Phillips #2)
- Level (6-inch or longer)
- Measuring tape
- Pencil for marking
- Wire cutters or zip-tie snips (for cable management)
Good lighting is underrated. Use a task lamp or natural light so you can see small alignment marks and read the mount instructions clearly.
Assessing Wall Strength and Desk Strength
The most common mistake is mounting a heavy screen into drywall alone. Drywall can hold a picture frame, not a 30 lb monitor with leverage from an articulating arm.
Identifying Wall Material
Knock on the wall: hollow sound usually means drywall over studs; solid thud means plaster, concrete, or brick. For drywall, you must mount directly into a stud—never into hollow space with only toggle bolts. Concrete and brick walls are stronger, but require a hammer drill and masonry anchors. For a concrete wall, use wedge anchors rated for pull-out force well above your monitor’s weight.
Locating Studs and Using Anchors Correctly
Use an electronic stud finder to mark the center of each stud. Studs are typically spaced 16 or 24 inches apart. Once you find one, measure 16 inches to locate the next—don’t rely on one reading alone. Check with a small nail after drilling to confirm solid wood behind.
If your desired mounting spot has no stud, you have two safe options:
- Move the mount location to align with a stud.
- Use a heavy-duty toggle bolt rated for at least 50 lb per bolt (four bolts = 200 lb capacity). Even then, avoid full articulating arms—use a fixed low-profile wall plate for the most safety.
Avoid plastic expansion anchors; they are designed for light shelves, not monitors.
Desk Considerations for Clamp Mounts
A desk clamp mount transfers all the monitor’s weight to the desktop edge. If your desk is hollow-core or thin particleboard, the clamp can crush the material or the desk may sag over time. Minimum ¾‑inch thick solid hardwood or high-density MDF is recommended. A steel-reinforced desk is ideal. If your desk wobbles, reinforce it with a metal support bar underneath or use a heavy duty cable management box to also add stability and hide wires.
For a simpler approach, a monitor shelf for writing desk can distribute weight if you’re not using an arm, but for ultrawides, an arm or wall mount is far better.
Mounting Process Step by Step
Once you’ve chosen the mount and confirmed the surface strength, follow these steps precisely.
Step 1: Mark and Drill
Hold the mount’s wall plate or desk clamp against the surface. Use a level to ensure it’s perfectly horizontal. Mark the screw holes with a pencil. Double-check measurements—a misalignment of even ¼ inch can cause the monitor to hang unevenly.
Use a drill bit slightly smaller than the screw diameter (for wood studs) or the anchor diameter (for concrete/masonry). Drill straight and to the depth specified in the mount manual.
Step 2: Install Wall Plate or Desk Clamp
Insert wall anchors if needed. Align the plate and drive screws with a drill or screwdriver. Tighten firmly—snug, not stripped. For desk clamps, tighten the clamp screw until the pad contacts firmly and the clamp doesn’t slide when you push it.
Step 3: Attach VESA Bracket to Monitor
Lay the monitor face-down on the soft cloth. Remove any existing stand. Align the VESA bracket with the monitor’s mounting holes. Use the screws provided (usually M4 or M6 length-matched to your monitor’s depth). Tighten gently—over-tightening can crack the plastic housing.
Step 4: Lift and Attach Monitor
Heavy ultrawides are awkward to lift alone. Get a second person to help support the bottom edge while you align the bracket with the mount head. Slide into place until you hear or feel a click. Double-check that all safety locks are engaged (gas spring arms often have a locking pin or collar).
Step 5: Tighten and Test
Secure all mounting bolts, then test by gently shaking the monitor. It should not wobble or shift. If using a desk arm, ensure the gas spring holds the monitor at your desired height without drifting down. Adjust the tension screw per the manual if needed.
Safety Checks and Ergonomic Adjustments
After installation, run through these checks weekly for the first month, then monthly thereafter.
Stability Check
Push the monitor gently from the top edge. Any lateral movement means the clamp or wall plate is loose. For wall mounts, verify that the plate hasn’t pulled away from the wall. For desk mounts, check that the clamp hasn’t loosened due to the desk’s thermal expansion or material compression.
Tilt, Swivel, and Height
Position the top of the screen at or slightly below eye level. Tilt the screen back 10–20° for comfortable viewing. Ensure the screen doesn’t interfere with keyboard or mouse movement. For dual-screen setups, an adjustable ergonomic dual monitor shelf can help align both monitors at the same height.
Cable Management
Cables pulling on the monitor can gradually loosen connections and cause strain on the mount. Use heavy duty cable ties to bundle power, DisplayPort, and USB cables together. Route them along the arm or wall plate before plugging into the monitor. Leave some slack (a few inches) so the monitor can swivel without yanking the cables.
For a cleaner look, install a cable management box with compartments under the desk to hide excess length.
Maintenance and Long-Term Care
A properly installed mount should last for years, but neglect can introduce risk.
- Tighten all screws every 6 months. Use a torque screwdriver if you have one—over-tightening can strip threads. Pay special attention to the tilt joint, as it loosens with repeated adjustment.
- Inspect for cracks or corrosion. Check the mount plate, arm joints, and clamp pads. Rust or stress fractures mean it’s time to replace.
- Dust the monitor and mount monthly. Dust buildup on the mount’s moving parts can increase friction and accelerate wear. Use a dry microfiber cloth; never spray liquid directly on electronics.
If you ever notice the monitor sagging or not holding position, stop using it immediately. Gas springs lose pressure over time and may need replacement. Most reputable brands offer replacement gas cylinders.
Frequently Asked Questions (Integrated)
Can I use a standard monitor arm for a 49-inch ultrawide?
Only if the arm is specifically rated for the size and weight. Standard arms for 32-inch monitors often top out at 20 lb—far too low. Look for arms with a minimum 33 lb capacity and a VESA pattern that matches your monitor.
Is it safe to mount an ultrawide on a glass desk?
No. Glass desks cannot handle the concentrated pressure of a clamp mount. Even a small crack can shatter. Use a wall mount instead, or place a reinforced wooden board under the clamp to distribute pressure—but glass remains risky.
What if my wall studs are not where I need them?
You can install a piece of ¾‑inch plywood spanning across two studs, then mount the plate to the plywood. Paint or stain the plywood to match the wall for a clean look.
Conclusion
Mounting a heavy ultrawide safely comes down to three things: choosing a mount that exceeds your monitor’s weight and VESA specs, securing it to a stud or reinforced surface, and checking stability regularly. Rushing the installation or cutting corners on hardware is the fastest way to end up with a broken screen.
Take your time. Use a helper for lifting. Follow the manufacturer’s torque specs. And once it’s up, enjoy the immersive, rock-solid display—without worrying about a crash.
