Are you looking to mount your monitor but stuck trying to find the right VESA pattern? Knowing the exact VESA pattern of your monitor is key to choosing the perfect mount that fits securely and safely.
Without this information, you risk buying the wrong bracket or struggling through complicated setups. You’ll discover simple, clear steps to quickly identify your monitor’s VESA pattern—so you can make confident buying decisions and get your workspace just right. Keep reading to unlock the easy way to find your monitor’s VESA pattern and transform your setup today.
What Is Vesa Pattern
The VESA patternis a standard for mounting monitors. It ensures compatibility between monitors and wall mounts. VESA patterns are measured in millimeters. They typically have four holes in a square or rectangle. Most monitors have a VESA pattern on the back. It helps you attach the monitor to a mount or stand.
| VESA Size | Description |
|---|---|
| 75×75 | Small monitors, usually under 22 inches |
| 100×100 | Common for monitors between 22 and 24 inches |
| 200×200 | Used for larger monitors and TVs |
VESA makes mounting easy. It fits different mounts and stands. You can save space on your desk. It allows flexible monitor positioning. This helps with better viewing angles. VESA ensures a secure mount. It reduces the risk of accidents. Always check your monitor’s VESA pattern. This ensures the right fit with your mount or stand.
Credit: medium.com
Locate Vesa Mounting Holes
Look at the back of the monitorto find the VESA pattern. Most monitors have four screw holesarranged in a square or rectangle. These holes are used to attach a VESA mount.
Sometimes, the stand covers the mounting holes. Remove the stand carefullyto see if the holes are underneath. Use a screwdriver if needed.
The distance between the holes shows the VESA size. Common sizes include 75×75 mmand 100×100 mm. This helps to pick the right mounting bracket.
Measure Vesa Pattern
First, find the four mounting holes on the back of the monitor. These holes form a square or rectangle pattern. The distance between these holes is the VESA pattern.
Measure the horizontal distancebetween the centers of two holes on the same row. Use a ruler or tape measure. Write down this number in millimeters (mm).
Next, measure the vertical distancebetween the centers of two holes on the same column. Again, use millimeters for accuracy.
These two numbers make up the VESA pattern, for example, 100mm x 100mm or 200mm x 100mm. This pattern helps you find the right monitor mount or bracket.
Use Manufacturer Specs
Manufacturer specifications often list the VESA pattern for your monitor. Checking these details helps ensure the mount fits correctly. This information is usually found in the product manual or on the manufacturer’s website.
Find Model Number
Locate the model numberon the back or bottom of your monitor. This number is key to finding the right VESA pattern. It usually includes letters and numbers.
Check Official Website
Visit the manufacturer’s official website. Enter your model number in the search bar or support section. Look for the product specifications or user manual. These often list the VESA mount size.
Common VESA patterns include 75×75 mm or 100×100 mm. Knowing this helps select the right mount for your monitor.
Identify Non-standard Patterns
Some monitors do not follow the standard VESA patterns. These are called non-standard patterns. They may have holes in unusual places or no holes at all. This makes it hard to find a matching mount.
Custom mounts are made to fit these unique patterns. They come in various shapes and sizes. These mounts can be adjusted to fit your monitor’s hole layout.
Adapters help connect non-standard monitors to regular VESA mounts. They fill the gap between your monitor and the mount. Many adapters are easy to install and remove. This makes them a good solution for unusual VESA patterns.
| Option | Description |
|---|---|
| Custom Mounts | Designed to match unique hole layouts exactly. |
| VESA Adapters | Attach to non-standard monitors to fit standard mounts. |
| Universal Brackets | Adjustable arms that fit many monitor sizes and patterns. |
Credit: www.tvmountmen.com
Tools Needed For Measurement
Using a ruler or tape measure helps to find the VESA pattern size. Measure the distance between the mounting holes on the back of the monitor.
Measure both the horizontal and vertical space in millimeters. This gives you the VESA pattern, such as 100×100 or 75×75.
Digital measuring tools like calipers can give more accurate results. They are easy to use and provide clear readings.
Both tools are affordable and widely available. Choose what fits your needs and comfort.
Tips For Accurate Measurement
Measure the distance between the mounting holeson the back of the monitor. Use a ruler or tape measure to get the exact width and heightfrom edge to edge. This helps find the correct VESA pattern size.
Check the measurements twiceto avoid mistakes. Even a small error can cause the mount not to fit. Use a flat surface and good lighting for accuracy.
- Measure horizontal distance from left hole to right hole.
- Measure vertical distance from top hole to bottom hole.
- Write down measurements in millimeters (mm).
- Compare with VESA standards like 75×75, 100×100, etc.

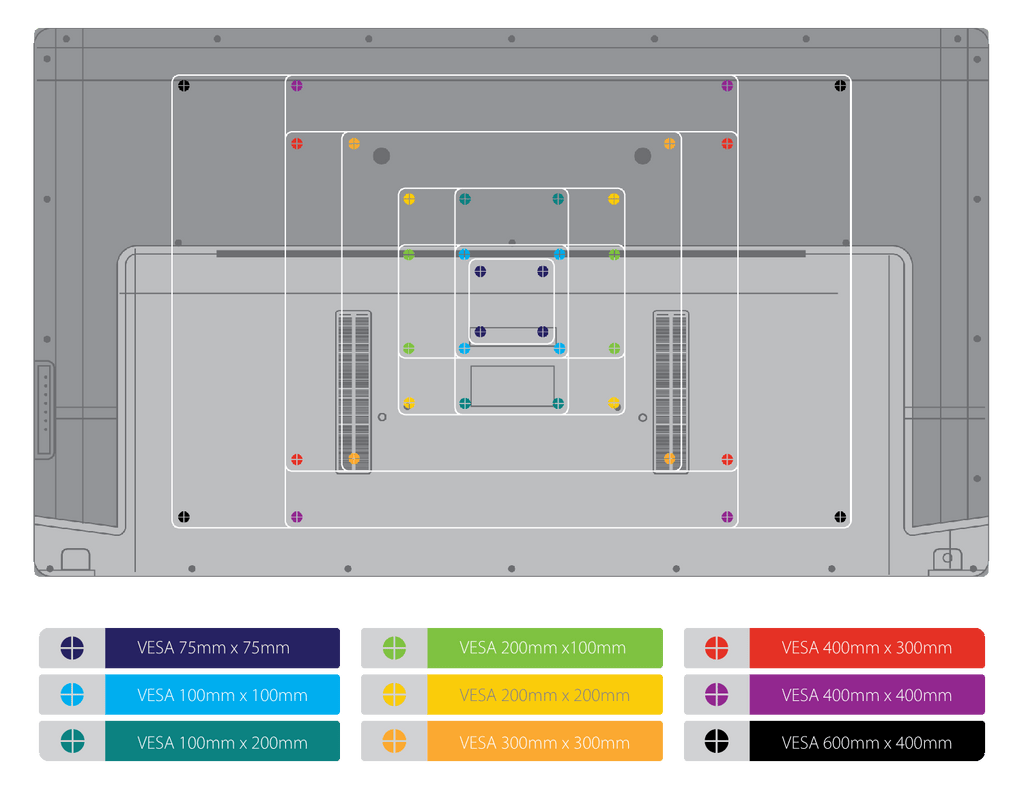

Common Vesa Patterns By Monitor Size
Small monitors usually have VESA patternslike 75×75 mm or 100×100 mm. These sizes fit most compact screens easily.
Medium monitors often use 100×100 mmor 200×100 mmpatterns. These allow for more stability and flexibility.
Large monitors tend to have bigger patterns such as 200×200 mmor even 400×400 mm. These support heavier and wider screens.
| Monitor Size | Common VESA Patterns (mm) |
|---|---|
| Small Monitors | 75×75, 100×100 |
| Medium Monitors | 100×100, 200×100 |
| Large Monitors | 200×200, 400×400 |
Mounting Options Based On Vesa
Wall mountsattach your monitor to the wall using the VESA holes. They save desk space and give a clean look. Make sure the mount fits the VESA size of your monitor.
Monitor armsoffer flexible positioning. They clamp to your desk or use a grommet hole. Arms allow easy height, tilt, and swivel adjustments. Check the VESA pattern compatibility before buying.
Desk standscome with built-in VESA mounts. They sit on your desk and hold the monitor. Stands are stable and good for fixed positions. Match the VESA size for a secure fit.
Credit: www.tv-wall-brackets.co.uk
Frequently Asked Questions
What Is A Vesa Pattern On A Monitor?
A VESA pattern is a standardized mounting hole layout on the back of monitors. It allows compatibility with various mounts and stands. The pattern is measured in millimeters, typically in a square or rectangular arrangement.
How Do I Measure My Monitor’s Vesa Pattern?
Measure the horizontal and vertical distance between the mounting holes on your monitor’s back. Use a ruler or tape measure in millimeters. The measurement gives you the VESA pattern size, such as 100×100 mm or 75×75 mm.
Why Is Knowing The Vesa Pattern Important?
Knowing the VESA pattern ensures you buy a compatible monitor mount or stand. It prevents purchasing incompatible accessories, saving time and money. It also helps in setting up ergonomic and flexible monitor positioning.
Can All Monitors Have Vesa Mounting Holes?
Not all monitors have VESA mounting holes. Some budget or ultra-thin monitors lack the holes due to design constraints. Always check your monitor’s specifications or back panel for VESA compatibility before buying mounts.
Conclusion
Finding the VESA pattern for your monitor is simple and quick. Measure the distance between the holes on the back carefully. Use this size to pick the right mount or stand. Knowing your VESA pattern helps you set up your workspace better.
It keeps your monitor safe and stable. Keep these tips handy for future monitor setups. Your screen will stay secure and look great. Easy steps lead to a perfect fit every time.
