Choosing the right VESA size for your spring arm can make a huge difference in how secure and comfortable your setup feels. If you’ve ever struggled with a wobbly monitor or a spring arm that just won’t fit, you know how frustrating it can be.
But don’t worry—getting this right is easier than you think. In this guide, you’ll learn exactly what to look for and how to pick the perfect VESA size so your monitor stays stable, looks great, and gives you the flexibility you need.
Keep reading to avoid costly mistakes and make your workspace work for you.
Credit: www.amazon.ca
Vesa Standards Explained
Choosing the right VESA size for a spring arm depends on the monitor’s mounting holes. Measure the distance between these holes to match the VESA pattern. This ensures a secure and stable fit for your display.
Common Vesa Sizes
VESA sizes are important for mounting screens. Sizes like 75×75 mm and 100×100 mm are common. Bigger screens use sizes like 200×200 mm. Understanding these sizes helps in choosing the right mount.
Measurement Units
Sizes are measured in millimeters (mm). VESA patterns show distance between holes. Knowing these measurements ensures the right fit. It’s like a puzzle piece fitting perfectly.
Importance For Mounting
Correct VESA size means easy mounting. Wrong size can cause problems. Proper fit keeps screens safe and secure. Always check the VESA size before buying a mount.
Spring Arm Mount Basics
Spring arms help hold monitors or devices in place. They offer flexibilityand adjustable positioning. Choosing the right VESA size is key for secure mounting.
Types Of Spring Arms
- Single spring arms: Best for lightweight devices.
- Double spring arms: Support heavier monitors.
- Gas spring arms: Provide smooth and easy movement.
Load Capacity
Each spring arm has a weight limit. Check your device weight and compare with arm capacity. Avoid overload to prevent damage.
Compatibility Factors
| Factor | Details |
|---|---|
| VESA Size | Common sizes: 75x75mm, 100x100mm. Match the mount with your device. |
| Mount Type | Clamp or grommet. Choose based on desk setup. |
| Arm Reach | Longer arms give more movement range. |
Matching Vesa Size To Spring Arm
Every monitor has a VESA pattern, which is the distance between mounting holes. Most common sizes are 75×75 mmand 100×100 mm. Check the back of your monitor or its manual for this pattern. It helps to match the spring arm’s mounting plate.
Spring arms come with different mounting plate options. Some support multiple VESA sizes. Others have adjustable plates or adapters to fit various patterns.
Non-standard sizes need adjusting. Use an adapter plate or a custom bracket. This keeps the monitor stable and secure. Make sure the arm can support the monitor’s weight.
Credit: vivo-us.com
Tools And Tips For Measuring
Use a ruler or tape measure to get exact dimensions of the mounting holes.
Measure the distance between the center of one hole to the center of the opposite hole.
Check if the holes form a square or rectangle shape. This helps identify the VESA size.
- Locate all four mounting holes on the back of your monitor or TV.
- Clean the area around the holes for clear measuring.
- Mark the holes to avoid mistakes during measurement.
Common mistakes include measuring edge to edge instead of center to center.
Do not guess the size; always use a measuring tool.
Double-check measurements before buying a spring arm mount.
Installation Best Practices
Securing the mountis key for safe and stable installation. Use screws that fit the VESA holes perfectly. Tighten them well, but avoid over-tightening to prevent damage. Check that the mount sits flush against the surface.
Balancing weightensures smooth movement and prevents strain. Know your monitor’s weight before choosing a spring arm. The arm must support the weight without sagging or pulling down. Adjust tension settings to match the load for steady positioning.
Safety precautionsprotect both the device and the user. Double-check all screws and fittings before use. Avoid mounting on weak or unstable walls. Use anchors if needed. Regularly inspect the arm and mount for wear or loosening.

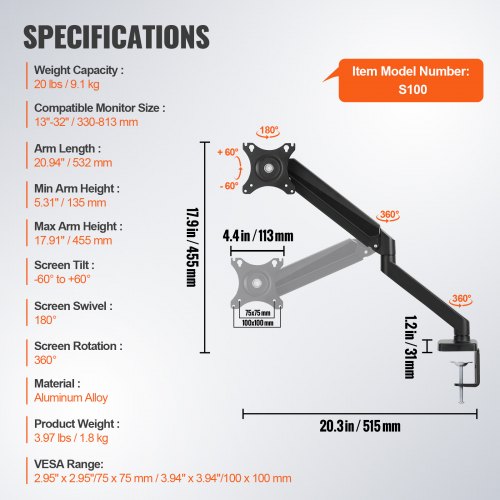

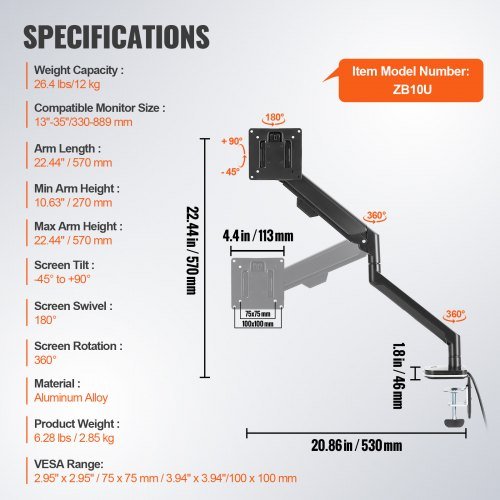

Credit: www.vevor.ca
Troubleshooting Fit Issues
When the VESA size does not matchyour spring arm, use adapters and spacers. These tools help bridge size gaps. They also ensure a secure fitwithout damaging your device.
Adapters come in different sizes. Spacers add small gaps for better alignment. Both are easy to install and remove.
| Tool | Purpose | Benefit |
|---|---|---|
| Adapter | Changes mounting hole pattern | Fits different VESA sizes |
| Spacer | Adds space between mount and device | Prevents pressure and damage |
Consult professionals if unsure about fit or safety. Experts can recommend the right parts and ensure proper installation. This prevents damage and keeps your setup safe.
Popular Spring Arm And Vesa Size Combinations
Choosing the right VESA size ensures your spring arm fits your monitor securely. Common sizes include 75x75mm and 100x100mm. Match the VESA pattern with your device for stable support and easy installation.
For Small Monitors
Small monitors usually use VESA 75x75mmor 100x100mmmounts. These sizes fit screens up to 24 inches. Most spring arms support these VESA sizes and hold monitors weighing less than 10 pounds. Choose a spring arm with adjustable tensionfor better support and easy movement.
For Large Screens
Large screens need bigger VESA sizes like 200x200mmor 400x400mm. These mounts fit monitors over 27 inches. Spring arms for large screens must hold more weight, usually 15 pounds or more. Look for strong arms with wide adjustment rangeto hold the screen steady.
Special Cases
| Monitor Type | VESA Size | Spring Arm Features |
|---|---|---|
| Ultrawide Monitors | 100x100mm to 200x100mm | Extra width support, strong arms |
| Curved Monitors | 100x100mm to 200x200mm | Flexible tilt and swivel |
| Touchscreen Monitors | 75x75mm or 100x100mm | Stable, with easy reach |
Frequently Asked Questions
What Is Vesa Size In Monitor Spring Arms?
VESA size refers to the standardized hole pattern on the back of monitors. It ensures compatibility with spring arms and mounts. Common sizes include 75x75mm and 100x100mm. Choosing the correct VESA size guarantees a secure fit for your monitor arm.
How To Measure Vesa Size For A Spring Arm?
Measure the horizontal and vertical distance between the mounting holes on your monitor. Use millimeters for accuracy. Match these dimensions to the spring arm’s VESA compatibility. This ensures your monitor will attach properly to the arm.
Why Is Vesa Size Important For Spring Arms?
VESA size ensures your monitor fits securely on the spring arm. Incorrect sizing can cause instability and damage. Using the right VESA size enhances safety and ergonomic positioning. It also guarantees full functionality of the spring arm.
Can I Use Different Vesa Sizes With One Spring Arm?
Many spring arms support multiple VESA sizes through adjustable plates. Check the arm’s specifications for compatible sizes. This flexibility allows you to use various monitors without needing different mounts. Always verify compatibility before purchase.
Conclusion
Choosing the right VESA size makes your spring arm work well and last long. Match the VESA pattern on your monitor with the arm’s mount size. Check weight limits to keep your setup safe and steady. Simple steps avoid damage and save time.
This helps your workspace stay neat and comfortable. Now, you can set up your spring arm with confidence and ease. Ready for a better screen experience?
